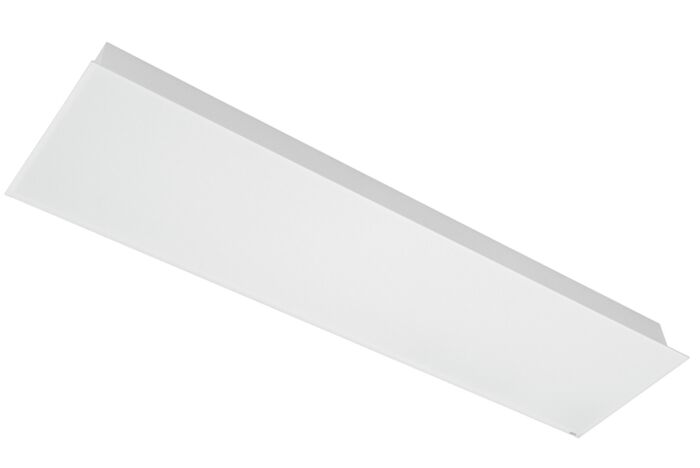

Module 1200X300 23W/830 DA2 PSO
A modular luminaire designed for mounting on suspended ceilings in offices and other public spaces. Due to its excellent efficiency, the luminaire is a highly energy- and cost-efficient option. Available in two housing sizes. The bottom of the luminaire has the IP54 protection rating. Available with an opal or a micro-prismatic diffuser (UGR19) suitable for working with monitors Recessed mounting on a T-grid ceiling or, with accessories, on a plasterboard ceiling. A recessed-mounting frame is available as an accessory.
Steel housing and opal or micro-prismatic polystyrene diffuser (PSO or PSMP).
White RAL 9016.
Protection class I.
Recessed mounting.
Linkable, 3/5 x 2.5 mm2
Installation height 2–4 m.
Fixed LED: 23–32 W / 2,900–4,200 lm.
Colour temperatures 3,000 K and 4,000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20/IP54.
The standard range includes On/Off and Dali-2 models.
Ambient temperature range 0 ... 25 °C.
Rated lifetime L70 100,000 h (Ta25°C).
Rated lifetime L80 65,000 h (Ta25°C).
Power source lifespan: 100,000 h.
A 600x600 general recessed mounting frame (4297811), 1,200x300 general recessed mounting frame (4297812) and a 600x600/143 mm surface mounting frame (4245223) are available as accessories.
WH = white, DA2 = Dali-2, PS = polystyrene, O = opal, MP = micro-prismatic
Also available as Casambi, 1–10 V and Switch Dim solutions. CRI > 90 available by special order. Also available with various connecting wire solutions. The colour temperature options available are: 2,700 K, 5,700 K and 6,500 K as well as Tunable White. In addition, 600x300 mm emergency light models are available via separate order.
| Suitable for wall mounting | No |
|---|---|
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | Yes |
| Suitable for recessed mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for light line configuration | No |
| Fit for workplace acc. EN 12464-1 | No |
| Lamp type | LED not exchangeable |
| With lamp | Yes |
| Suitable for number of lamps | 18 |
| Lamp holder | Other |
| Housing material | Steel |
| Housing surface protection | Powder coating |
| Housing colour | White |
| Cover material | Plastic, opal |
| Type of grid | None |
| Voltage type | AC |
| Nominal voltage (min) (V) | 220 |
| Nominal voltage (max) (V) | 240 |
| Type of control gear | LED operating device current-controlled |
| Control gear included | Yes |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI-2 | Yes |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dimming function | No |
| Light distributor | Diffuser lens/optic/panel |
| Light sharing | Symmetric |
| Beam angle | Extreme wide beam >80° |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Light outlet | Direct |
| Energy efficiency class of light source according to EU regulation 2019/2015 | Not required |
| Rated life time L70/B50 at 25 °C (h) | 100000 |
| Max. number of luminaires per miniature circuit breaker B16 | 57 |
| Max. number of luminaires per miniature circuit breaker C16 | 96 |
| Rated ambient temperature acc. IEC62722-2-1 (min) (°C) | 0 |
| Rated ambient temperature acc. IEC62722-2-1 (max) (°C) | 25 |
| Suitable for emergency lighting | No |
| Emergency power supply integrated | No |
| With movement sensor | No |
| With air slots | No |
| Suitable for lamp power (min) (W) | 23 |
| Suitable for lamp power (max) (W) | 23 |
| Maximum system power (W) | 23 |
| Luminaire efficacy (lm/W) | 126 |
| Effective luminous flux (lm) | €2,900.00 |
| Colour of light (alphanumeric) | White |
| Colour temperature (min) (K) | €3,000.00 |
| Colour temperature (max) (K) | €3,000.00 |
| Power factor | 0.9 |
| Width (mm) | €296.00 |
| Height/depth (mm) | €90.00 |
| Length (mm) | €1,196.00 |
| Type of wiring | Suitable for through wiring |
| Number of poles | 5 |
| Conductor cross section (mm²) | 2.5 |
| Connection type | Screwless terminal |
| Total harmonic distortion | 10 |
| Photobiological safety according to EN 62471 | RG0 |
| Colour temperature switchable | No |
| Bluetooth operated | No |
| Compatible with Casambi | No |
| ETIM class | EC002892 |
| Dimming Touch and Dim | No |
| With light sensor | No |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Colour | White |
| Is tailored | No |
| Product family | Module |
