Office P 1245 33W/TW CA AL MA

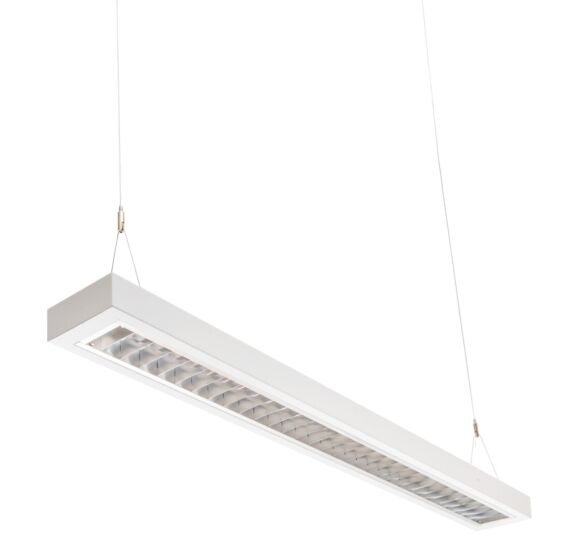

The suspension-mounted Office P is an energy-efficient office luminaire range with a downlight. This extensive range offers numerous customisation options. Its optics features include an aluminium parabolic louvre and integrated opal shield, which eliminate glare from the LEDs and achieve a low Unified Glare Rating l/value (UGR <19). The luminaire is delivered with a 2-metre cable. Typical applications include schools, offices and other spaces where computers are used.
Steel housing, low-luminance louvre made of anodised aluminium.
White, RAL9003.
Protection class I.
Suspension mounting, 2 meters cabel (1 mm2 MSK), connection via a junction box.
Integrated LED:
1245 mm 33 W 4000 lm / 46 W 5500 lm.
1545 mm 42 W 5000 lm / 58 W 7000 lm.
Colour temperatures 3,000 K and 4,000 K and Tunable white 2700–6500 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
IK02.
On/off, Dali-2, with pushbutton control 230V and CLO-function, Casambi (Bluetooth mesh) and ActiveAhead (with G2 sensor).
Ambient temperature range 0 … 25 °C.
Rated lifetime L80 100,000 h (Ta25°C).
Rated lifetime L90 80,000 h (Ta25°C).
Wire suspension kit (4107113) as accessory.
WH = white, DA2 = Dali-2, CA = Casambi, AA = Helvar ActiveAhead, AL = aluminium, MA = low luminance.
Also available in colour temperatures 2700 K, 5000 K and 6500 K. CRI > 90 available for order. Project-specific luminous flux packages available on request. High-gloss louvre optics are available for the luminaire by special order. Available color options are also grey (RAL 9007) or black. Available with one pull switch, on/off and Dim.
| Suitable for light line configuration | No |
|---|---|
| Fit for workplace acc. EN 12464-1 | Yes |
| Lamp type | LED not exchangeable |
| With lamp | Yes |
| Suitable for number of lamps | 1 |
| Lamp holder | Other |
| Housing material | Steel |
| Housing colour | White |
| Cover material | Plastic matt/satinized |
| Type of grid | Matt |
| Voltage type | AC |
| Nominal voltage (min) (V) | 220 |
| Nominal voltage (max) (V) | 240 |
| Type of control gear | LED operating device current-controlled |
| Control gear included | Yes |
| Exchangeable control gear | Yes |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DALI-2 | No |
| Dimming DMX | No |
| Dimming programmable | Yes |
| Dimming DSI | No |
| Dimming RF | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming Sine Wave Reduction | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dimming function | No |
| Light distributor | Reflector |
| Reflector | Matt |
| Light sharing | Symmetric |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Light outlet | Direct |
| Direct-/indirect proportion separately controllabl | No |
| Energy efficiency class of light source according to EU regulation 2019/2015 | D |
| Rated life time L70/B50 at 25 °C (h) | 100000 |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 90 |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | 85 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | 5 |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | 10 |
| Suitable for emergency lighting | No |
| Emergency power supply integrated | No |
| Suitable for lamp power (min) (W) | 33 |
| Suitable for lamp power (max) (W) | 33 |
| Maximum system power (W) | 33 |
| Effective luminous flux (lm) | €4,000.00 |
| Colour of light (alphanumeric) | White |
| Luminaire efficacy (lm/W) | 120 |
| Colour temperature (min) (K) | €2,700.00 |
| Colour temperature (max) (K) | €6,500.00 |
| Unified Glare Rating (UGR) | 19 |
| Power factor | 0.9 |
| Flickering value Pst LM | 1 |
| Constant luminous flux control | Yes |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature switchable | Continuously variable |
| Lumen setting adjustable | No |
| Beam angle adjustable | No |
| Width (mm) | €140.00 |
| Height/depth (mm) | €60.00 |
| Length (mm) | €1,245.00 |
| Suspension supplied with the product | No |
| Pendant length (min) (mm) | 500 |
| Pendant length (max) (mm) | 2000 |
| Type of wiring | Ending |
| Number of poles | 3 |
| Conductor cross section (mm²) | 1 |
| Connection type | Other |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Bluetooth operated | Yes |
| ETIM class | EC001743 |
| Dimming Touch and Dim | No |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Colour | White |
| Is tailored | No |
| Product family | Office P |
